MGS Views the 'Face on Mars' - Comparison with Viking

Target Name:  Mars
Spacecraft:  Mars Global Surveyor
Produced by:  Malin Space Science Systems/NASA
Copyright: NASA Copyright Free Policy
Cross Reference:  576232779.22003 (P220-03 NA image)
Date Released: 6 April 1998

Related Document
Download Options

NameTypeWidth x HeightSize
face3.jpgJPEG800 x 25032K
face3.gifGIF1600 x 500409K

Shortly after midnight Sunday morning (5 April 1998 12:39 AM PST), the Mars Orbiter Camera (MOC) on the Mars Global Surveyor (MGS) spacecraft successfully acquired a high resolution image of the Face on Mars feature in the Cydonia region. The image was transmitted to Earth on Sunday, and retrieved from the mission computer data base Monday morning (6 April 1998).

The picture was acquired 375 seconds after the spacecraft's 220th close approach to Mars. At that time, the 'Face', located at approximately 40.8° N, 9.6° W, was 275 miles (444 km) from the spacecraft. The 'morning' sun was 25° above the horizon. The picture has a resolution of 14.1 feet (4.3 meters) per pixel, making it ten times higher resolution than the best previous image of the feature, which was taken by the Viking Mission in the mid-1970's. The full image covers an area 2.7 miles (4.4 km) wide and 25.7 miles (41.5 km) long.

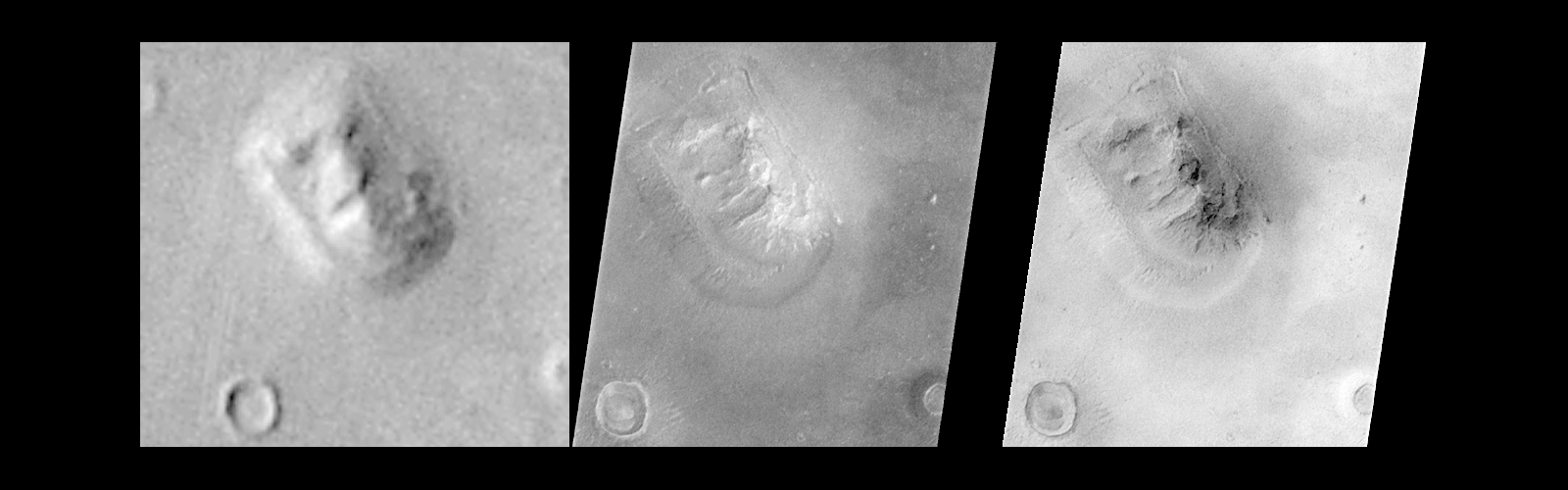

In this comparison, the best Viking image has been enlarged to 3.3 times its original resolution, and the MOC image has been decreased by a similar 3.3 times, creating images of roughly the same size. In addition, the MOC images have been geometrically transformed to a more overhead projection (different from the mercator map projection of face1 & face2) for ease of comparison with the Viking image. The left image is a portion of Viking Orbiter 1 frame 070A13, the middle image is a portion of MOC frame shown normally, and the right image is the same MOC frame but with the brightness inverted to simulate the approximate lighting conditions of the Viking image.

Processing

Image processing has been applied to the images in order to improve the visibility of features. This processing included the following steps:

  1. The image was processed to remove the sensitivity differences between adjacent picture elements (calibrated). This removes the vertical streaking.

  2. The contrast and brightness of the image was adjusted, and 'filters' were applied to enhance detail at several scales.

  3. The image was then geometrically warped to meet the computed position information for a mercator-type map. This corrected for the left-right flip, and the non-vertical viewing angle (about 45° from vertical), but also introduced some vertical "elongation" of the image for the same reason Greenland looks larger than Africa on a mercator map of the Earth.

  4. A section of the image, containing the 'Face' and a couple of nearly impact craters and hills, was 'cut' out of the full image and reproduced separately.
