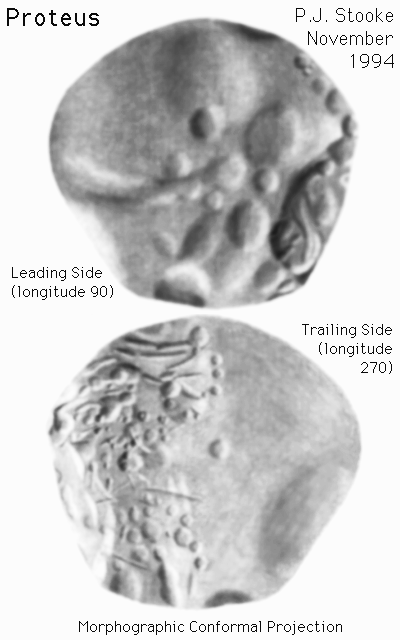

Shaded Relief Map of Proteus

Target Name:  Proteus
Spacecraft:  Voyager 2
Produced by:  Phil Stooke
Copyright: Public Domain

Related Document
Download Options

NameTypeWidth x HeightSize
proteus1.gifGIF400 x 64098K

This is a shaded relief map of Proteus, a small inner satellite of Neptune. As with all maps, it is the cartographer's interpretation and not all features are necessarily certain given the limited data available - this interpretation stretches the data as far as is feasible. The original map was published in its full form with latitude-longitude grid and feature names, in:

Stooke, P.J., 1994. "The Surfaces of Larissa and Proteus", EARTH, MOON AND PLANETS, V. 65, pp. 31-54.
Positions in the map are controlled by a digital shape model, described in that paper. For this map, the three dimensional convex hull of the shape model was projected into the Morphographic Conformal Projection (the conventional Stereographic Projection modified for non-spherical worlds). The leading side (longitude 90 runs vertically down the centre) faces forwards in the orbit of Proteus. The trailing side (longitude 270 runs vertically down its centre) faces backwards along the orbit. Longitude 0 is at the righthand end of the leading side, and faces Neptune. As with all conformal (true shape) projections, the scale in these maps varies, increasing from the centre to the outer edge.

The map projection is described in:

Stooke, P.J. and Keller, C.P., 1990. "Map Projections for Non-Spherical Worlds / the Variable-Radius Map Projections", CARTOGRAPHICA, V. 27, No. 2, pp. 82-100.

This version of the file, with labels intact, is in the public domain.

Philip Stooke,
Department of Geography,
University of Western Ontario,
London, Ontario, Canada N6A 5C2
stooke@sscl.uwo.ca
